Description crank:

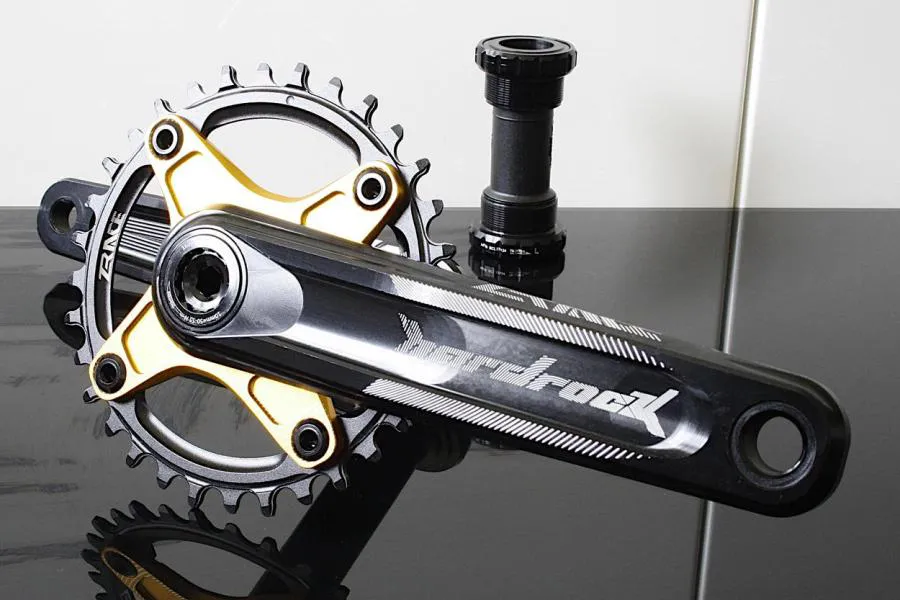

Crank Kit of Zrace, Hardrock Edition 12 speed special edition crank set with 170 or 175 mm pedal arms and BSA Hollotech II bottom bracket system. The crank is CNC milled with a weight of 630 grams, direct mount chainring and 104 mm bolt circle diameter, this is screwed directly onto the crank with 32, 34, 36 or 38 teeth. A weight saving without loss of stiffness and durability for maximum chain guidance, chain tension and reduced chain noise. An optimized tooth arrangement improves the cleaning of the chainring, possible wear and tear is reduced. The bottom bracket is included in the crank kit.
Technical data of the crank:
Material: Aluminium / CNC milled
Chainring: 32, 34, 36 or 38 teeth
Circle diameter: 104 mm, Direct Mount
Crank length: 170 or 175 mm
Axle diameter crank: 24 mm
Weight: 630 grams
Colour: black, gold

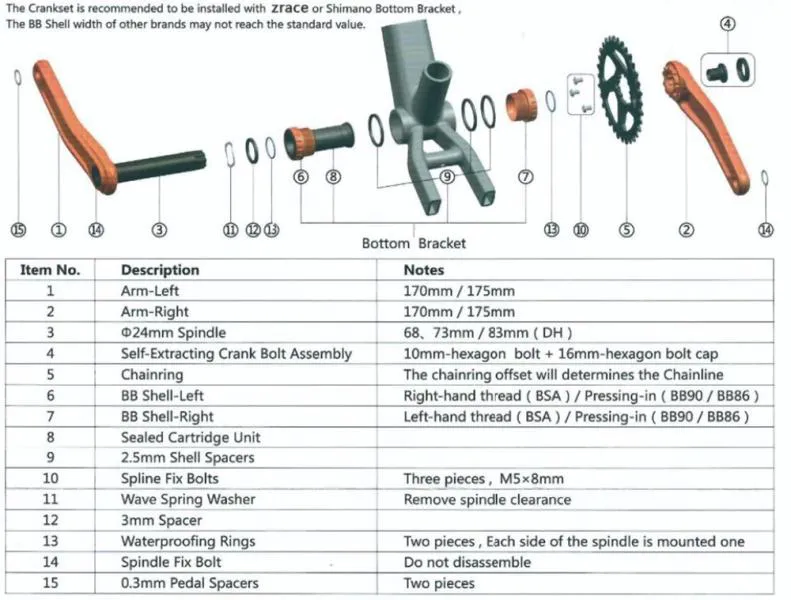

Scope of delivery:
1 x Crank left with axle spindle
1 x Crank right

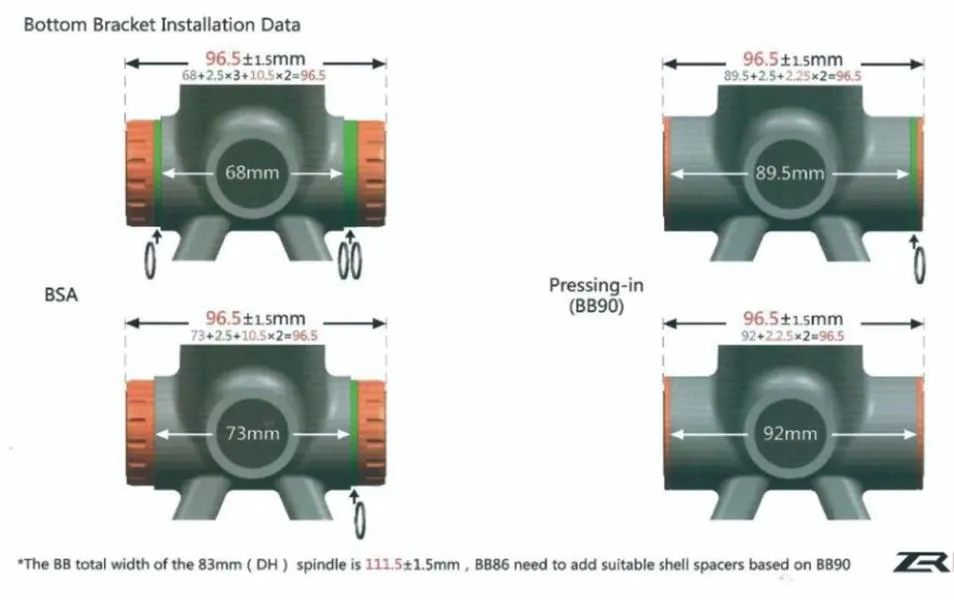

1 x Hollotech II, BSA bottom bracket
1 x chainring, bolt circle diameter 104 mm, direct mount
Spacer for bottom bracket and crank kit, stainless steel screws, mounting screw
Further note: Delivery time is 25-30 working days, exchange after order excluded.
With your purchase you agree to a different material composition, different quality compared to original products. This could result in wear and tear, such as the teeth of the cassette being more easily damaged in use or the product surface visibly changing due to wear and tear of the components. In case of assembly, assembly marks on components, exchange is excluded. We hereby expressly advise you to check the agreed quality at the time of transfer of risk and to make a complaint before driving. We do not accept any liability for any assembly not carried out by us. Please use your right of revocation if you do not wish to agree to the contents of the contract.
Unfortunately there are no reviews yet. Be the first who rates this product.
Manufacturer information
ZRaceXiamen Yantaizheng Industry and Trade Co., Ltd.
CN-No. 23, Haiqian Road, Jimei District, Fujian Province,
Xiamen City
Country of origin: China
Importer / Responsible Person in the EU
m bike parts feine FahrradteileWallmenrother Str. 8
57581 Katzwinkel, Germany
Contact: Email: info@m-bikeparts.de
Safety Warnings and Safety Information
Installation:
Our products must be installed properly using the appropriate tools and in accordance with the included installation instructions.
If you lack experience, we recommend having the installation performed by a qualified professional or a bicycle mechanic.
Before Riding:
After assembly, the drivetrain must function flawlessly across the entire gear range while the bike is on the assembly stand. The cassette and all associated components must be correctly installed and securely fastened. If the shifting is faulty or any components—such as the brakes—are not securely fastened, the bicycle must not be ridden.
Note on Use:
The cassette and chain are wear parts. During normal use, chains may stretch, the tooth flanks of the sprockets may wear down, and the surface of the cassette may visibly change due to contact with the bicycle chain. This wear and tear, which results from normal use, is due to normal wear and tear and, as such, does not constitute a material defect in the goods, which were free of defects at the time of delivery.
Intended Use:
For use on bicycles in accordance with the product’s technical specifications.
Inspection and Return:
Upon receipt, please first inspect your merchandise for completeness, condition, and compatibility.
You may assemble the product and test its functionality on the assembly stand. If you wish to exercise your statutory right of withdrawal, you should not ride your product beyond what is necessary for inspection, as further use may result in signs of wear and tear and a possible reduction in value. Any compensation for loss of value to be paid will be determined in accordance with statutory requirements.
The consumer’s statutory rights, in particular the statutory right of withdrawal and statutory warranty rights, remain unaffected.
