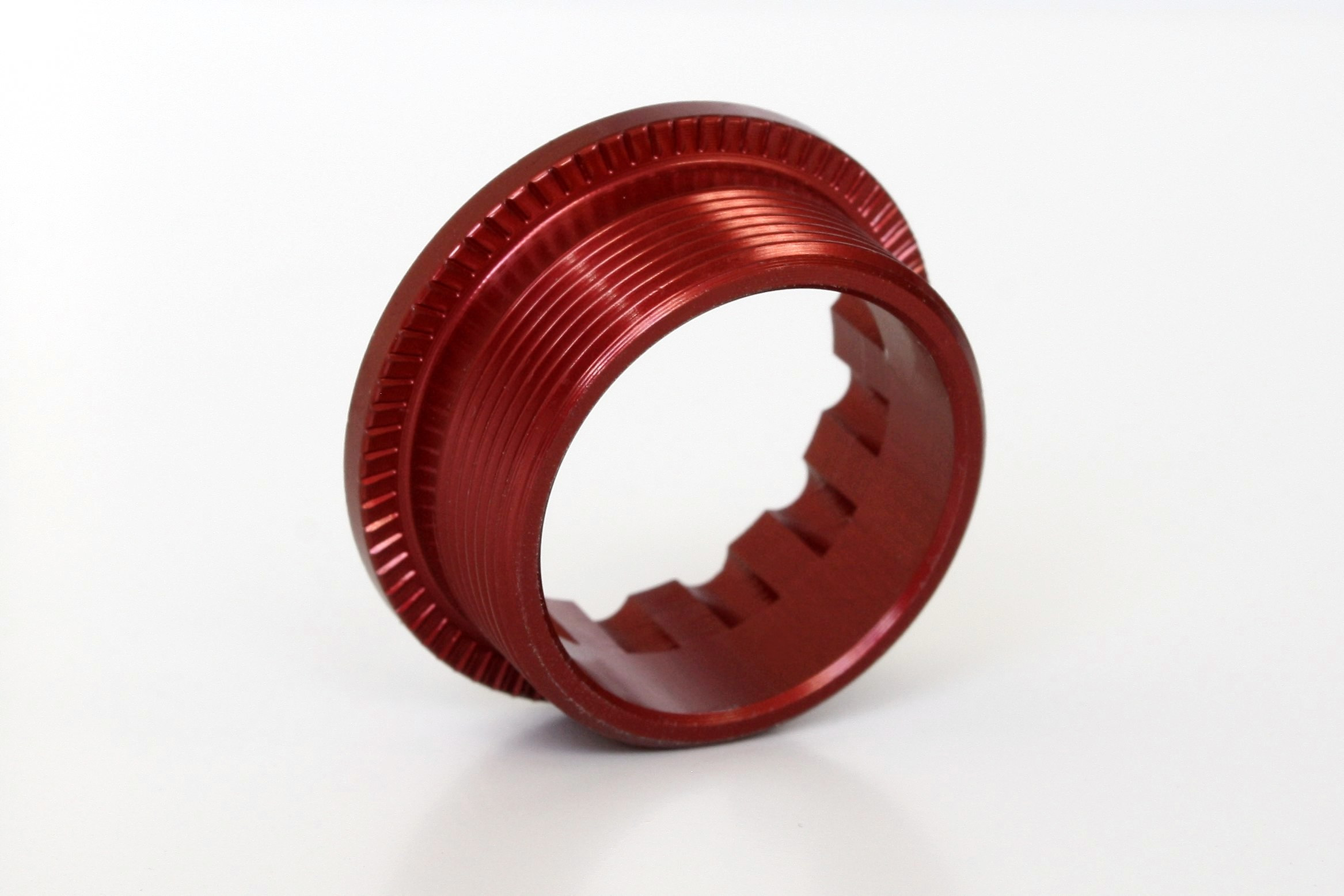

Micro Spline Lockring compatible with SHIMANO 12-speed (MTB, Gravel) – extra-long thread, safety teeth, red
The extra-long thread engages deeper into the freehub thread than conventional lockrings—for greater thread engagement and a secure connection.
The m-bike parts lockring for SHIMANO Micro Spline 12-speed cassettes is made of high-quality aluminum and also features integrated safety teeth. The red anodized finish gives it a premium, sporty look, and it’s ultra-lightweight.
The lockring is compatible with SHIMANO Micro Spline 12-speed cassettes, including the SHIMANO XTR CS-M9100, SHIMANO DEORE XT CS-M8100 and SHIMANO SLX CS-M7100.
The Advantage of the Extra-Long Thread
With a cut thread length of approximately 6.25 mm, the m-bikeparts lockring engages deeper into the internal threads of the Micro Spline freehub body than conventional lockrings. This creates a larger threaded engagement area, enabling a secure and stable connection between the cassette, lockring, and freehub body.
Another advantage: If the outer or front threads of the freehub body are slightly damaged or worn, the longer thread can utilize threads located further inside that are still intact. This may compensate for minor damage in the initial section of the thread under certain circumstances.
Important: The lockring does not repair a damaged thread. If the freewheel thread is severely damaged or can no longer withstand the load, the freewheel body must be replaced or the thread must be re-cut.
Integrated Safety Teeth
The m-bike parts lockring also features safety teeth. These additional teeth distinguish it from conventional lockrings that lack safety teeth.
Technical Comparison
| Manufacturer Article, Manufacturer Nr. | SHIMANO Y0GY98010 | RONDEXIN 71469298 | m-bike parts 80514397 |
| Total Height | 11,90 mm | 11,95 mm | 12,05 mm |
| Cut Tread Length | 4,00 mm | 5,50 mm | 6,25 mm |
| Safety Teeth | no | yes | yes |
| Surface Finish | Standard | eloxiert | rot eloxiert |
Technical Specifications
- Product: Lockring / End Ring compatible with SHIMANO Micro Spline cassettes
- System: For mountain bike and gravel 12-speed Micro Spline sprockets only
- Compatible with: SHIMANO XTR CS-M9100, DEORE XT CS-M8100, SLX CS-M7100, and other Micro Spline cassettes
- Smallest sprocket on the cassette: 9 or 10 teeth
- Material: Aluminum
- Color: Red, anodized
- Total height: approx. 12.05 mm
- Tightening torque: 35–40 Nm
- Threaded length: approx. 6.25 mm
- Safety teeth: Yes
- Weight: approx. 5.5 g
Scope of delivery:
1 x Lockring in red
Compatible with:
SHIMANO XTR RD-M9100-GS, RD-M9100-SGS, RD-M9120-SGS/ + M9200
SHIMANO DEORE XT RD-M8100-GS, RD-M8100-SGS, RD-M8120-SGS/ + M8200
SHIMANO SLX RD-M7100-SGS, RD-M7120-SGS 12 Speed
SHIMANO DEORE RD-M6100-SGS
This lockring is not compatible with SHIMANO HYPERGLIDE or HYPERGLIDE+ (Road)
